RC1-H DIGITAL ROTOR CONTROL

Our price is $250 +$9.00 shipping

This is the MDS RC1-H (Digital Rotor Control).

The RC1-H is the ham M, II, III, IV, and Tailtwister digital rotor control box. It is a UPGRADE box, in that you must still use the power (24VAC @5A) from your old control box, or supply your own AC power supply. This RC1-H includes a serial interface for computer control.

Our price is $250 +$9.00 shipping

This is a close up shot of the main display screen of the RC1 Digital Rotor Control with explanations of the data displayed.

The Callsign is user programmable.
The Compass Rose shows as N, NE, SE, S, SW, W, and NW
The GO TO heading is dialed up by the front knob for azimuth heading desired
The CMD displays the GO TO heading generated by the computer control.
Displays error messages below the rotor heading.

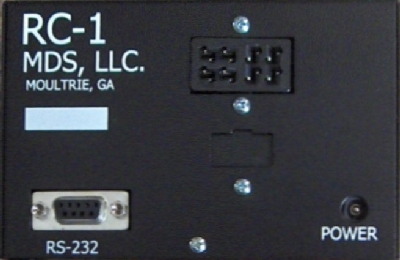

Rotor Control Cable
RS-232 DB9 Computer Interface
Power Connector

RC1-H FEATURES

Digital Control for Ham II, IV, T2X,, CDE, HyGain, Wilson, and many other common antenna rotators
Uses slave power from existing Ham Series and AC controllers
Automatic brake control on Ham Series rotators
Automatic brake loosening "waggle" when starting a turn'
User variable brake delay timing (menu item)
Computer controlled operation via the included serial port
Graphic LCD screen with large bright numbers and letters
Easy-on-the-eye blue background blends with modern stations
Go-to button and reciprocal ( long path ) heading knob for quick changes
Priced below the repair cost of many factory control boxes
Field upgradeable firmware via the serial port
Rugged steel enclosure for maximum RF shielding
Designed and made in U.S.A.
All these features at half the cost of similar digital controls
Weight: 1.43 lbs. (650 grams)
Dimensions: 3.4 in. (85.7mm) H x 5.25 in. (133.4mm) W x 4.125 in. (104.8mm) D
Internet ordering, pay with Credit Card, PayPal, check, or money order
Limited Warranty 1 Year Parts and Warranty (See Manual for details)

Price: $250 + $9.00 shipping.

*** INTERNATIONAL CUSTOMERS - Please use (CREDIT CARD CART) and add the additional shipping surcharge for the shipping method wanted. For International Paypal payment email sales@mds-ham.com to receive an email payment request for items wanted and shipping method requested.

+$8 for international first class

+$16 for international priority mail

+$56 for international express mail

ORDER RC1-H Credit Card

PAYPAL PAYMENT BELOW
